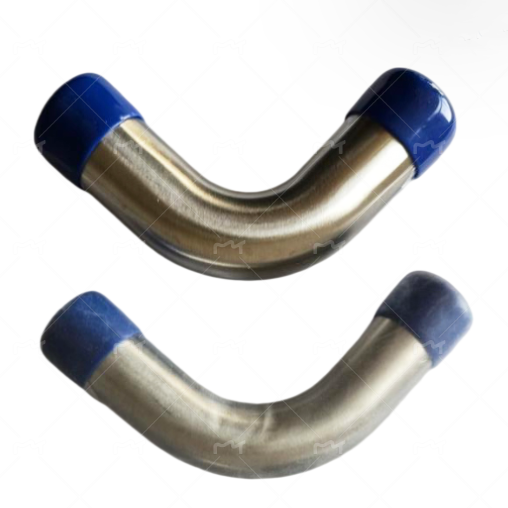

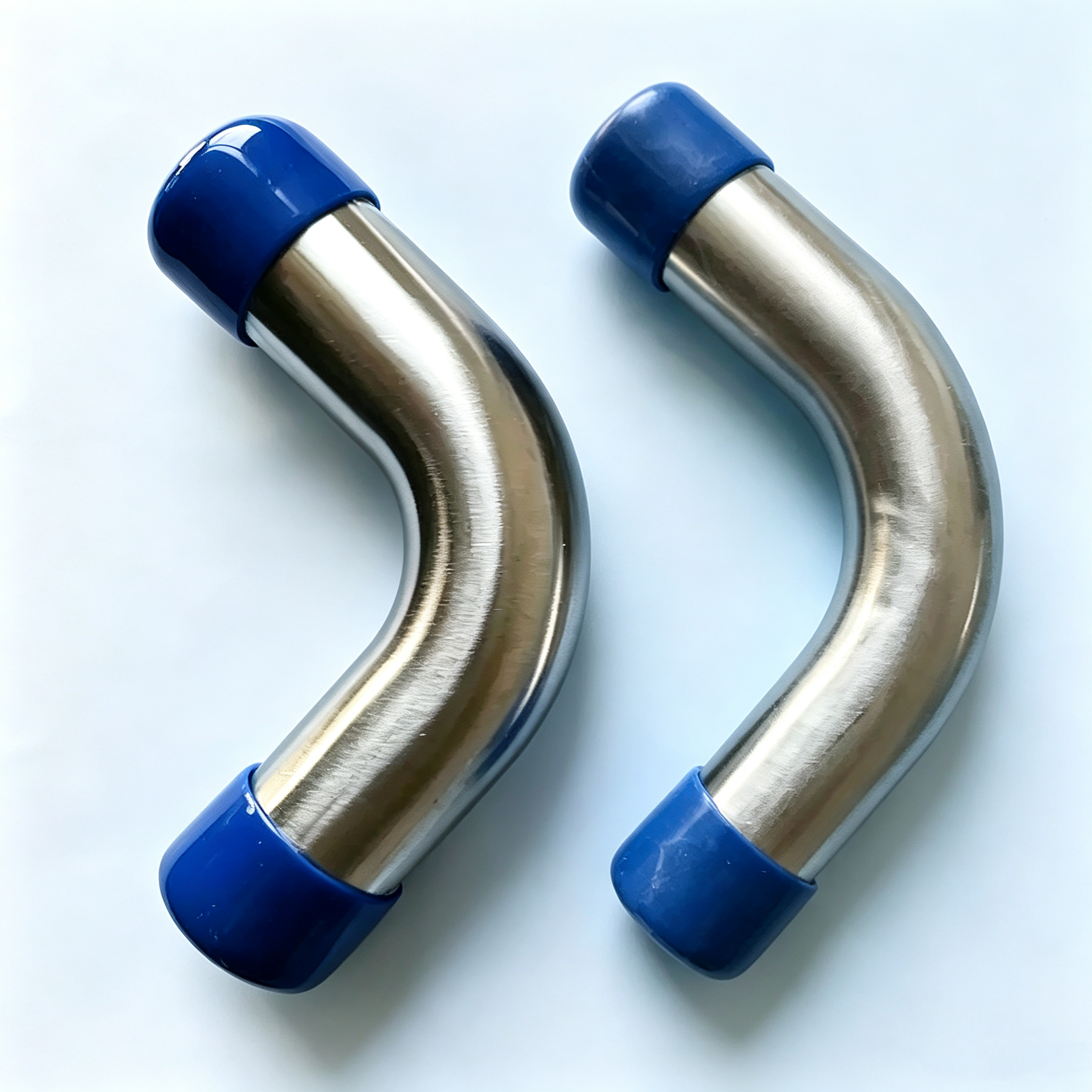

不锈钢光亮弯头 (BA，EP)
不锈钢光亮弯头 (BA，EP)
材质： TP304L, TP316L
90°弯头 | ||||
规格 | A | R | ||
O.D. | W.T. | |||
Inch | mm | mm | mm | |
1/4 | 6.35 | 0.89 / 1.0 | 53.32 | 14.22 |
3/8 | 9.53 | 0.89 / 1.0 | 66.55 | 14.22 |
1/2 | 12.70 | 1.24 | 66.55 | 19.05 |
3/4 | 19.05 | 1.65 | 66.55 | 28.45 |
1 | 25.40 | 1.65 | 101.60 | 38.10 |
1-1/2 | 38.10 | 1.65 | 95.25 | 57.15 |
15A | 21.70 | 1.65 | 75.00 | 38.10 |
20A | 27.20 | 1.65 | 75.00 | 38.10 |
25A | 34.00 | 1.65 | 75.00 | 38.10 |
