不锈钢光亮三通 (BA, EP)
不锈钢光亮三通 (BA, EP)
材质： TP304L, TP316L

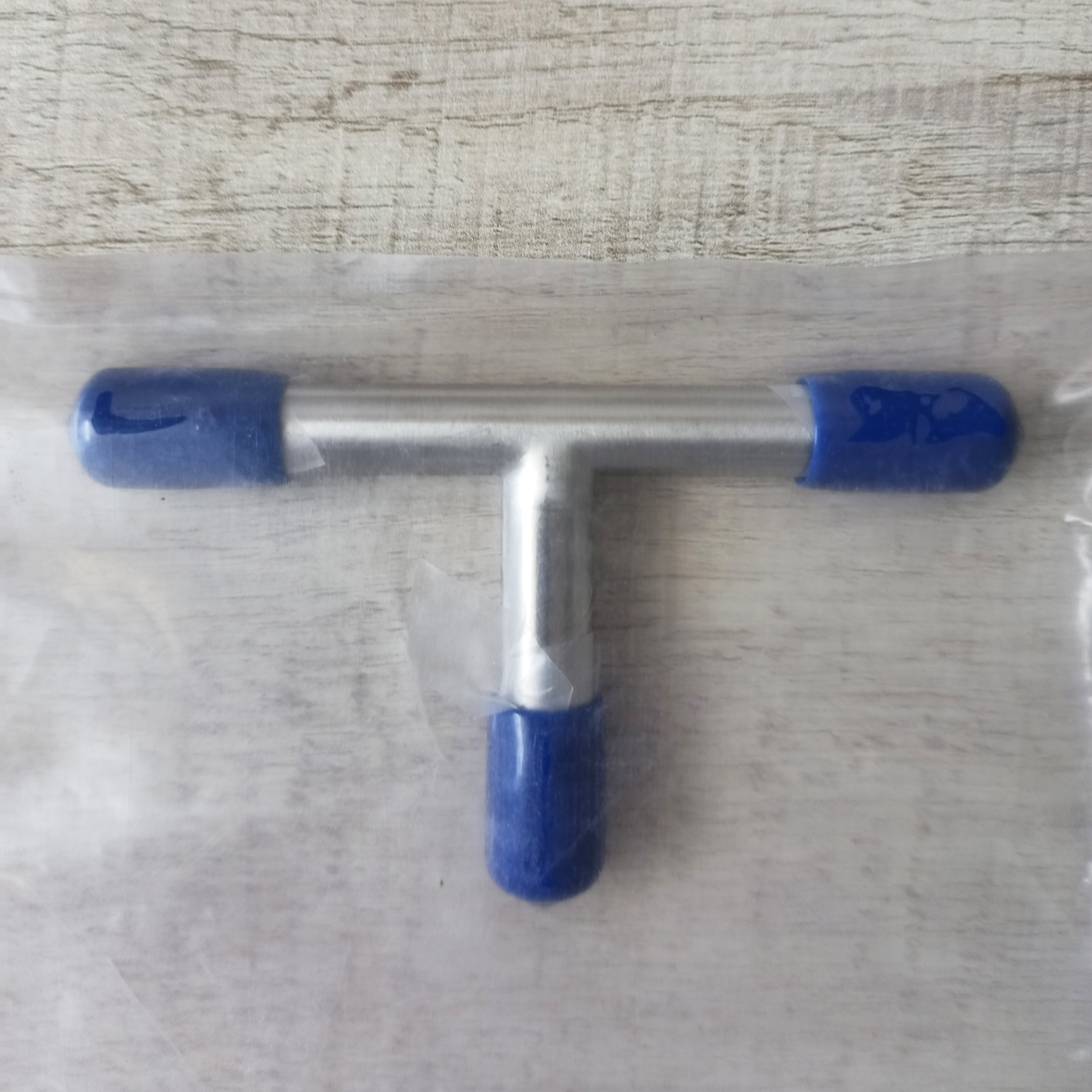

不锈钢等径三通 | |||||
规格 | A | B | C | ||
O.D. | W.T. | ||||
Inch | mm | mm | mm | mm | mm |
1/4 | 6.35 | 0.89 / 1.0 | 44.45 | 44.45 | 88.90 |
3/8 | 9.53 | 0.89 / 1.0 | 44.45 | 44.45 | 88.90 |
1/2 | 12.70 | 1.24 | 53.85 | 53.85 | 107.70 |
3/4 | 19.05 | 1.65 | 53.85 | 53.85 | 107.70 |
1 | 25.40 | 1.65 | 63.50 | 63.50 | 127.00 |
1-1/2 | 38.10 | 1.65 | 60.30 | 60.30 | 120.60 |
15A | 21.70 | 1.65 | 59.00 | 59.00 | 118.00 |
20A | 27.20 | 1.65 | 65.00 | 65.00 | 130.00 |
25A | 34.00 | 1.65 | 68.00 | 68.00 | 136.00 |

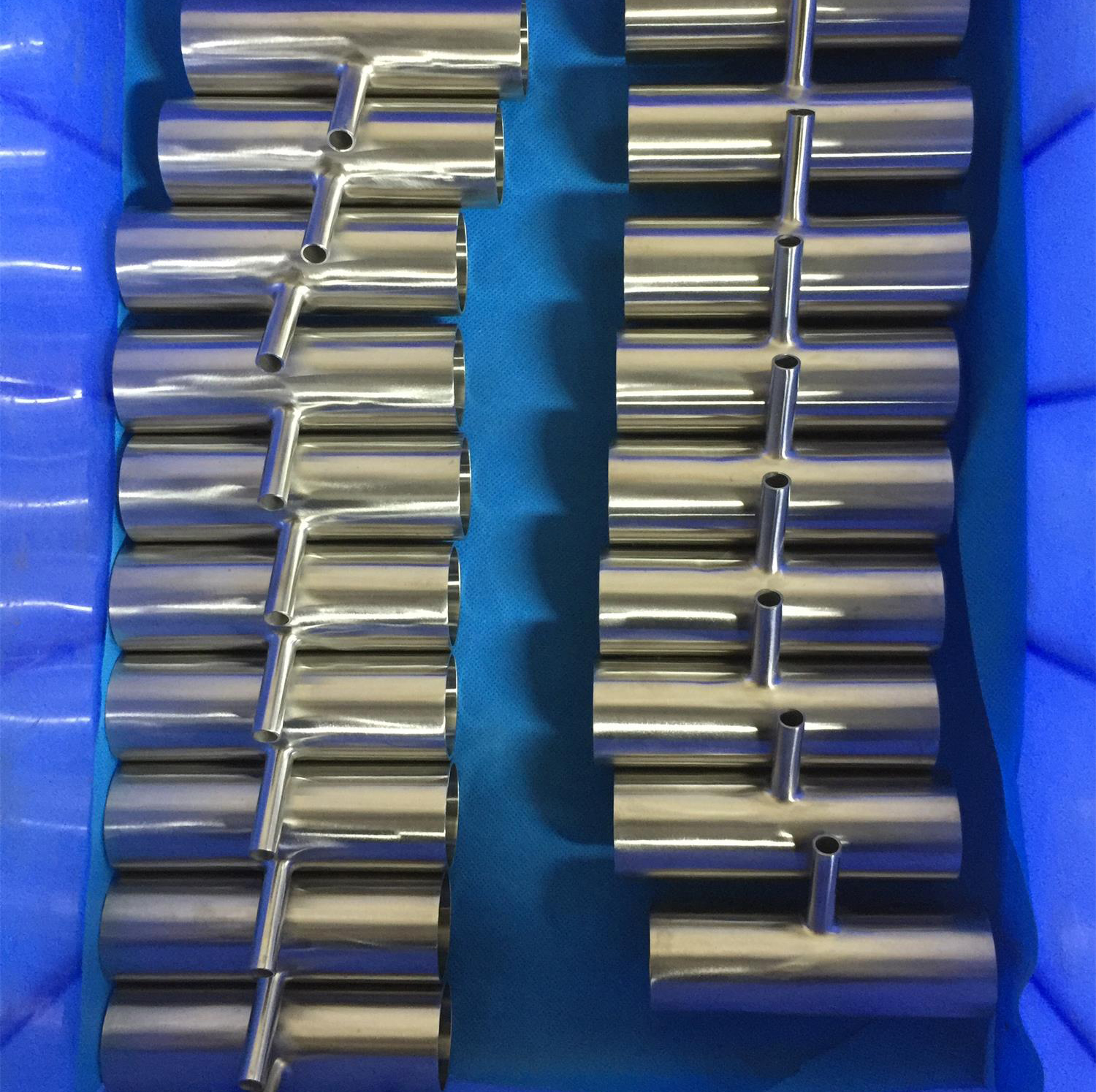

不锈钢变径三通 (mm) | |||||||
规格 | O.D.1 | O.D.2 | W.T.1 | W.T.2 | A | B | C |
1/8" x 1/4" | 9.53 | 6.35 | 0.89 / 1.00 | 0.89 / 1.00 | 44.45 | 44.45 | 88.90 |
1/2" x 1/4" | 12.70 | 6.35 | 1.24 | 0.89 / 1.00 | 53.85 | 53.85 | 107.70 |
1/2" x 3/8" | 12.70 | 9.53 | 1.24 | 0.89 / 1.00 | 53.85 | 53.85 | 107.70 |
3/4" x 1/4" | 19.05 | 6.35 | 1.65 | 0.89 / 1.00 | 53.85 | 53.85 | 107.70 |
3/4" x 3/8" | 19.05 | 9.53 | 1.65 | 0.89 / 1.00 | 53.85 | 53.85 | 107.70 |
3/4" x 1/2" | 19.05 | 12.70 | 1.65 | 1.24 | 53.85 | 53.85 | 107.70 |
1" x 1/4" | 25.40 | 6.35 | 1.65 | 0.89 / 1.00 | 63.50 | 63.50 | 127.00 |
1" x 3/8" | 25.40 | 9.53 | 1.65 | 0.89 / 1.00 | 63.50 | 63.50 | 127.00 |
1" x 1/2" | 25.40 | 12.70 | 1.65 | 1.24 | 63.50 | 63.50 | 127.00 |
1" x 3/4" | 25.40 | 19.05 | 1.65 | 1.65 | 63.50 | 63.50 | 127.00 |
1-1/2" x 1/4" | 38.10 | 6.35 | 1.65 | 0.89 / 1.00 | 60.30 | 60.30 | 120.60 |
1-1/2" x 3/8" | 38.10 | 9.53 | 1.65 | 0.89 / 1.00 | 60.30 | 60.30 | 120.60 |
1-1/2" x 1/2" | 38.10 | 12.70 | 1.65 | 1.24 | 60.30 | 60.30 | 120.60 |
1-1/2" x 3/4" | 38.10 | 19.05 | 1.65 | 1.65 | 60.30 | 60.30 | 120.60 |
1-1/2" x 1" | 38.10 | 25.40 | 1.65 | 1.65 | 60.30 | 60.30 | 120.60 |
